PVC-free Acoustical Wall & Ceiling System

GeoTRAK® System

100% PVC-free, 100% Sound Acoustics

PVC-Free Acoustic System for Walls & Ceilings

As architects and designers move to LEED v4 and sustainable interior design environments, we saw the need to develop an acoustic system that matched in quality and durability as our traditional system.

GeoTRAK® is made up of PVC-free trak, environmentally-friendly infill and fabric.

GeoTRAK® wall and ceiling trak profiles offers the same strength, fit and ease of installation as our original FabriTRAK® profiles, while meeting LEED v4 requirements and are all DECLARE certified.

As part of the GeoTRAK® System, we offer TerraCORE® Poly - a DECLARE certified infill that is made up 80% post consumer recycled materials and is 100% recyclable. On top of the infill, there are a dozen fabric choices that combine textures, ultra-wide widths and custom dyeing capabilities, creating a total 'green' acoustic system.

Find A Dealer

Download Product Sheet

GeoTRAK® Profiles, Testing and Certifications

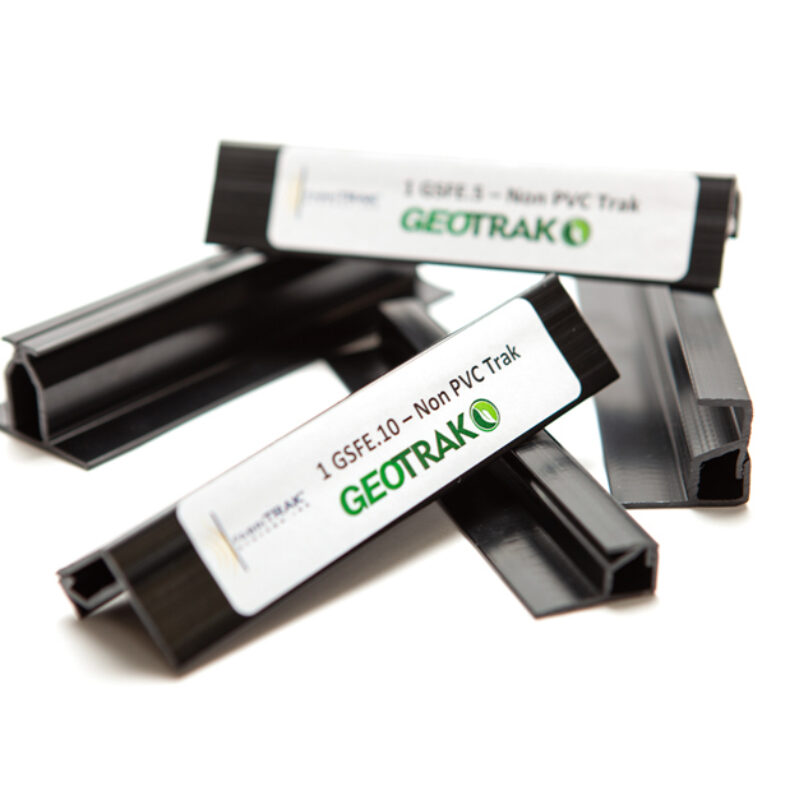

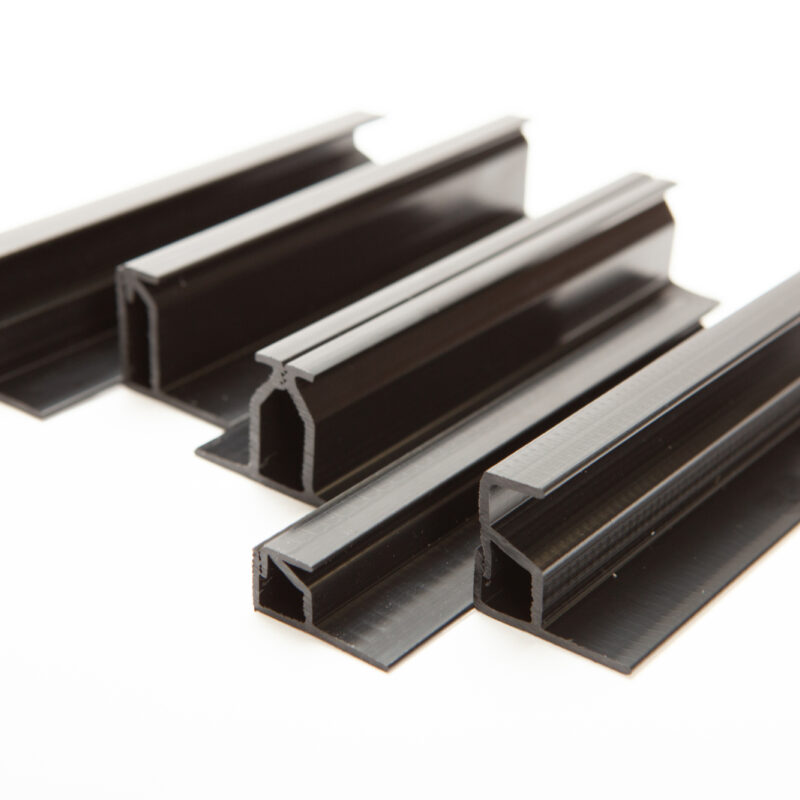

GeoTRAK® offers 7 wall profiles and 2 ceiling profiles. All GeoTRAK® profiles are available only in black.

GeoTRAK® is available in 4 1" (25mm) and 3 1/2" (13 mm) square wall profiles. Just launched are 2 1 3/8" (35mm) ceiling profiles. As with the traditional FabriTRAK® System, fabric is inserted into the specially designed fabric-receiving jaws with serrated and meshed teeth for superior gripping and holding.

The GeoTRAK® System incorporates TerraCORE® Poly infill material.

TerraCORE® Poly is a polyester product that is 100% recyclable, meets LEED v4 requirements and is DECLARE certified.

The GeoTRAK® System can be customized with fabric to blend in to any space.

Our FabriSPAN® collection offers a variety of fabrics that meet LEED v4 requirements and are DECLARE certified. FabriSPAN® fabrics are available in wide width (10') and ultra-wide width (16') sizes. Many FabriSPAN® fabrics may be custom dyed to any image - allowing total design creativity.

  • FabriSPAN® fabrics
  • FabriPRINT™
  • FabriART™
  • FabriPATTERN™
  • FabriFELT™
Geo TRAK Declare 2020


The only sound solution for sustainable sound absorption

All of the products within the GeoTRAK® System: trak profiles, infill and fabrics, have undergone rigorous testing and are DECLARE certified and meet LEED v4 requirements.

Designers Suggest

The GeoTRAK® System is an obvious choice for interiors where sustainability and environmentally-friendly solutions are specified. The System's infill is free of all VOCs and is safe, non-irritant, non-toxic and non-allergenic, making it easy to install without special equipment. It also does not retain moisture and does not mold. You will find the GeoTRAK® System in healthcare centers, hospitals, educational facilities, corporate interiors and more.

Technical Information


All GeoTRAK® profiles have been tested in accordance with ASTM E84-08 and later editions and have achieved a Class A rating.

A more complete and detailed explanation of fire testing methods and their incorporation into fire and building codes, along with FabriTRAK's compliance can be obtained by contacting us directly.
