Acoustical Wall & Ceiling System

FabriTRAK® System

FabriTRAK® is an exceptional fire-retardant rigid vinyl framework that provides a method for using textiles such as fabric, felt, leather, silk and vinyl, as an interior finish for walls and ceilings.

Acoustic System for Walls & Ceilings

FabriTRAK® established itself early on by creating a framework, known as 'trak', that is manufactured from a unique blend of polymers and fire-retardant additives tested to virtually no VOC emissions.

The FabriTRAK® System incorporates over 50 profiles of wall and ceiling trak, infill and fabric, and is designed to reduce Hertz levels (noise), enhance speech clarity and privacy, and provide an excellent articulation index, all while allowing designers total creativity in an interior space.

All FabriTRAK® Systems are constructed and installed on site by professional installers, ensuring precise panel alignment and an exact fit. FabriTRAK® is never pre-fabricated and design changes may be made at the time of installation - creating a completely customized sound solution.

Find A Dealer

Download Product Sheet

The FabriTRAK® System - complete acoustic wall and ceiling solutions

Trak profiles for every interior space.

FabriTRAK® is available in round edge, square edge and bevel edge details in sizes ranging from 3/8″ (10mm) to 2″ (50mm). However, any depth can be achieved with a custom build-out. There are over 50 different traks available to meet your every need. Fabric is inserted into specially designed fabric-receiving jaws with serrated and meshed teeth for superior gripping and holding.

Infill materials offer superb sound control solutions

Acoustic infills contribute to the NRC ratings of the entire FabriTRAK® System. TerraCORE® Poly and FabriTACK® are sound absorbing products that have their own benefits when included in the FabriTRAK® System. FabriBLOK® is used in the FabriTRAK® System as a noise isolation barrier.

Customize the space with fabric in any color, style, and texture

FabriSPAN® offers a complete collection of fabrics available in wide width (10') and ultra-wide widths (16'). Most fabrics can be custom dyed to any color or image - affording the designer total creativity in an interior space.

  • FabriSPAN®: wide width and ultra-wide width fabrics

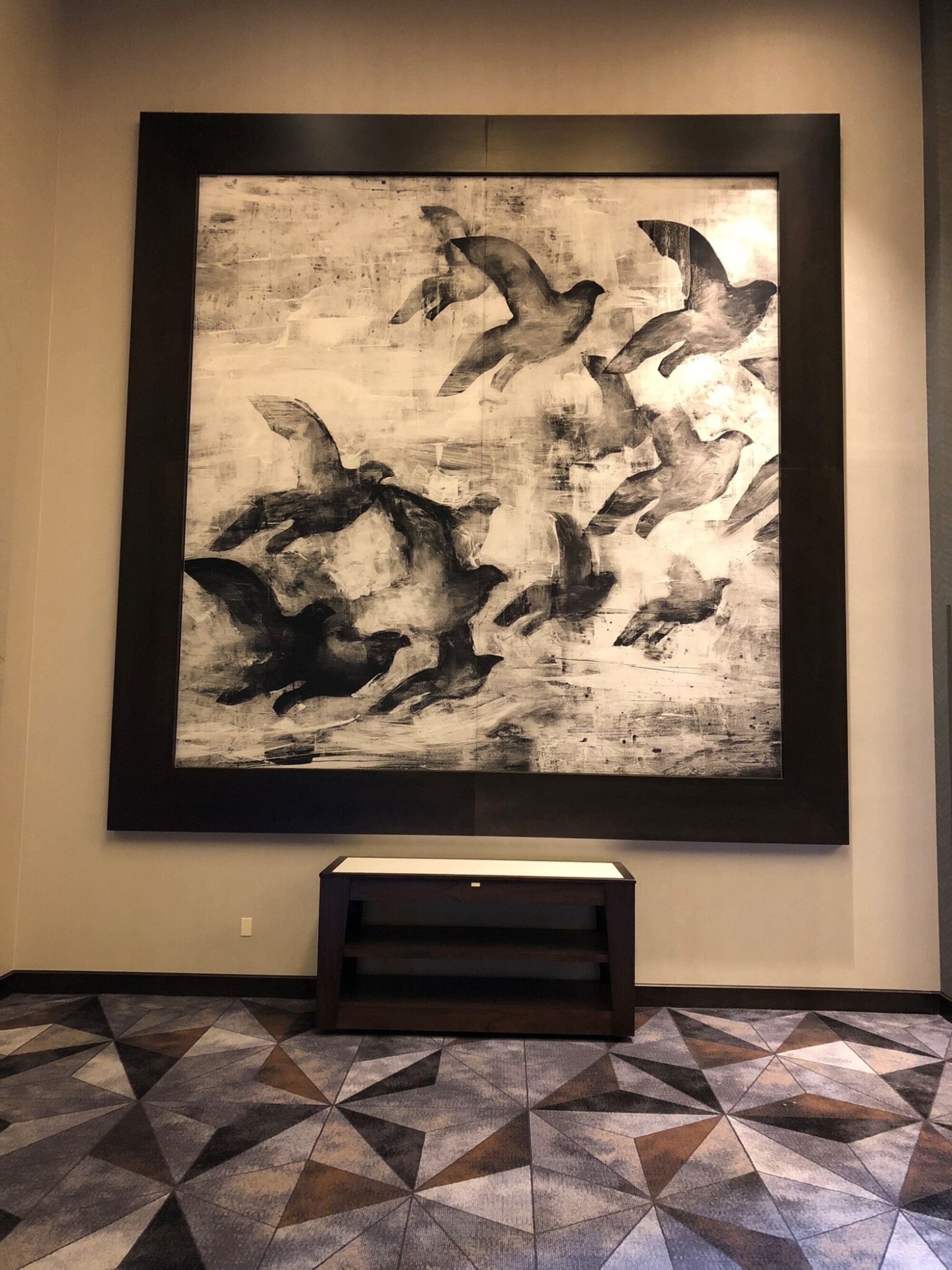

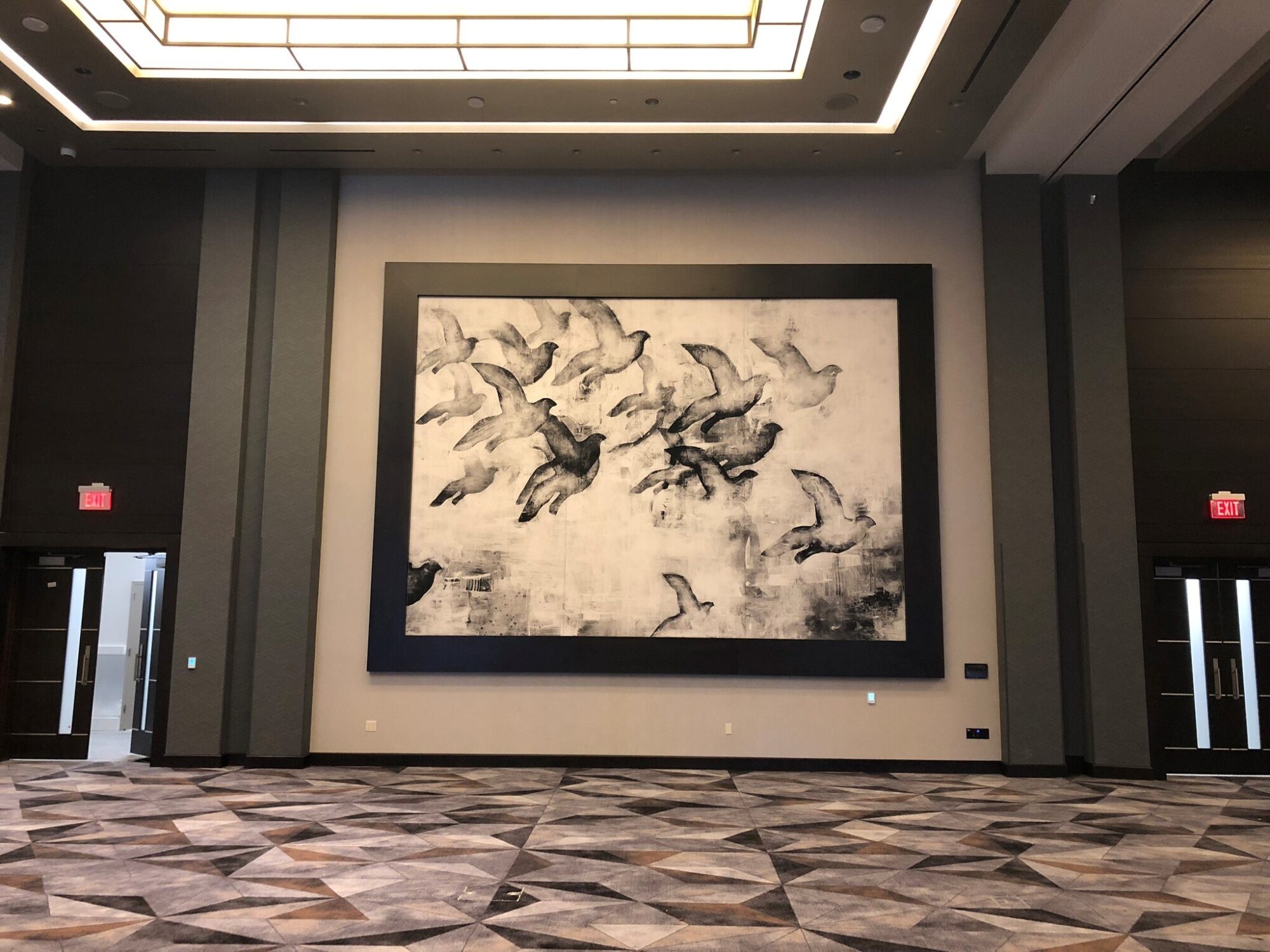

  • FabriPRINT™: FabriART™ and FabriPATTERN™
  • FabriFELT™: 100% natural wool felt, available upon request

Why Fabritrak®?

Acoustics are critical in space functionality. As we move through an interior space, acoustics affect not only how well we hear, but contribute to our ability to concentrate and communicate effectively.

#managethesoundtrak

Reduced Hertz levels, sound absorption & sound reverberation mitigated = a safe hearing environment.

#visuallysound

The largest selection of trak profiles in the industry allowing for a completely custom interior.

Designer Suggests

Subtle uses for FabriTRAK® can include fabric dyed to match surrounding walls, ceilings, even art in an interior. Here the designer opted for an understated off-white to blend in with the dry-erase wall around the room.

Technical Information

Fire Tests

All FabriTRAK® profiles in size ranges from 3/8" to 2" have been tested in accordance with ASTM E84-08 and later editions and have achieved a Class A rating.

A more complete and detailed explanation of fire testing methods and their incorporation into fire and building codes, along with FabriTRAK's compliance can be obtained by contacting us directly.

TESTING SUMMARY: All Systems tested resulted in Class A Ratings

CODE CLASSIFICATION SYSTEM

System SizeFurringFabricSystemInfillFlame SpreadSmoke DevelopmentMidseam
3/8"None13984 – Guilford of Maine – FR701FabriTRAK® SystemFabriFill (Double Layer)25250Yes
3/8"None12904 – Guilford of Maine – FR701FabriTRAK® SystemFabriFill20200Yes
1/2"None12743 – FabriSPAN™ FabricEZ Span™ System6 PCF Fiberglass20300Yes
1/2"None13985 – Guilford of Maine – FR701FabriTRAK® SystemFabriFill15200Yes
1/2"None12745 – Knoll MezzoFabriTRAK® System6 PCF Fiberglass15145Yes
1/2"None12746 – Guilford of Maine – FR701FabriTRAK® System6 PCF Fiberglass15120Yes
1/2"None12744 – Guilford of Maine – BaileyFabriTRAK® System6 PCF Fiberglass1545Yes
1/2"None12905 – Guilford of Maine – FR701FabriTRAK® SystemFabriFill10180Yes
1/2"None12742 – FabriSPAN™ FabricEZ Span™ SystemWilltec®10400Yes

Wall and Ceiling Profiles

FabriTRAK® Profiles

available in Square, Bevel, Radius & Corner edges.

available in natural and black.

available in 3/8" (10 mm), 1/2" (13 mm), 3/4" (19 mm), 1" (25 mm), 1 1/4" (32 mm), and 2" (50 mm) sizes. FabriTRAK® ceiling profiles are available in 1 3/8" (35 mm).

Trak Profiles Brochure

Access our complete list of wall and ceiling FabriTRAK® profiles.

The most trak profiles in the industry
